Standing Seam Roof Panel Machines: Revolutionizing Modern Metal Roofing Manufacturing

Introduction
In modern architectural and industrial construction, metal roofing is highly favored for its exceptional weather resistance and sleek aesthetics. Among various metal roofing systems, standing seam panels stand out due to their superior waterproofing and clean appearance. Behind this innovation lies the core manufacturing equipment: the Standing Seam Roof Panel Machine.

What is a Standing Seam Roof Panel Machine?

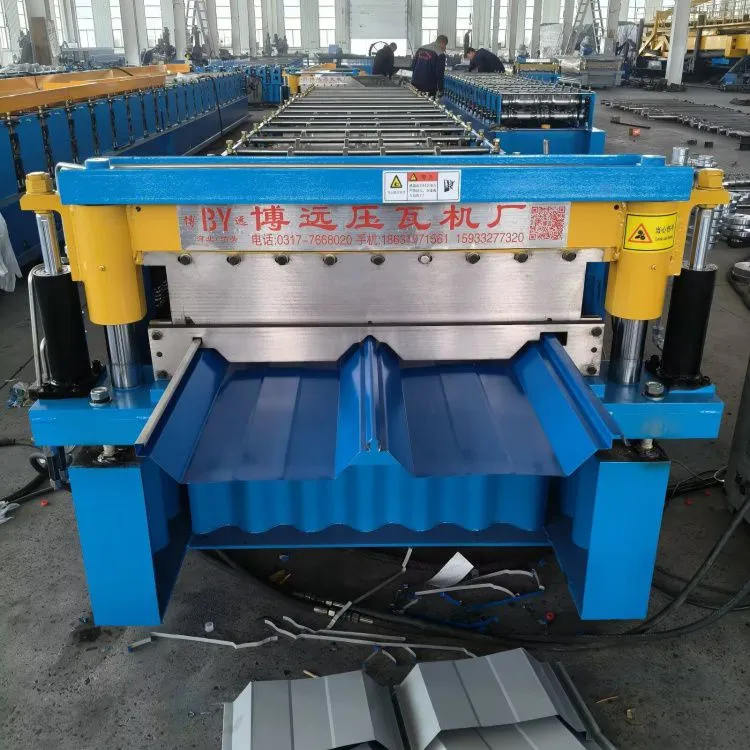

A standing seam roof panel machine, also known as a roll former, is specialized equipment that uses continuous cold roll forming to transform metal coils (such as PPGI or Al-Mg-Mn alloy) into panels with raised vertical interlocking seams. This unique design eliminates the need for exposed fasteners, fundamentally preventing leaks caused by screw holes while providing exceptional wind uplift resistance.

Core Advantages & Technical Highlights

1. Superior Waterproofing & Durability: Panels produced by these machines feature tight 360° interlocking seams. When paired with specialized aluminum alloy clips, they withstand extreme weather conditions. Materials like Al-Mg-Mn alloys also offer outstanding corrosion resistance, ensuring a lifespan of several decades.

2. Exceptional Design Flexibility: Modern roll formers can produce standard straight panels as well as curved panels (inner/outer arcs, fan shapes, and tapered panels). This adaptability perfectly meets the architectural demands of complex structures like stadiums and airport terminals.

3. High-Efficiency Automation: Equipped with PLC intelligent control systems and servo motors, these machines enable automatic length measurement, precise hydraulic cutting, and batch counting. Advanced models feature hydraulic tracking cutters that slice panels without stopping the production line, significantly boosting efficiency and minimizing waste.

4. The "Mobile Factory" Concept: For large-scale projects, portable or containerized standing seam machines are available. These units can be transported directly to the construction site for on-site panel production, solving transportation challenges for extra-long panels and drastically reducing construction time.

How to Choose the Right Machine?
When purchasing a standing seam roof panel machine, consider the following factors:

• Forming Process: Choose between "Snap-Lock" and "Mechanical Seam" machines based on your project needs. Mechanical seam panels offer tighter seals and are ideal for low-slope roofs or harsh climates.

• Core Components: Pay close attention to the roller material (e.g., forged #45 steel with hard chrome plating), motor brands, and the stability of the PLC system, as these directly determine precision and service life.

• After-Sales Service: A reliable supplier should provide installation, commissioning, operator training, and long-term technical support with readily available spare parts.
